OVERVIEW



FISH WITH FORCE

  • Get on fish faster, and stay on the water with the most powerful, most efficient trolling motor available1 — and it’s quiet, too.
  • Force is more efficient at 24 V than the competition’s 36 V system. No lie.
  • Wirelessly connect to your Garmin Chartplotter, and open up a world of possibilities.
  • It comes with sonar built in, too? That’s just too good to be true.
  • All the control of a cable-steered pedal without the cable.
  • Just point the handheld remote where you want to go, and Force will take you there.



HIGH-POWERED

Force trolling motor has the power to move you from spot to spot more quickly and stand up better to winds and currents — and it’s still whisper quiet.



REMARKABLE EFFICIENCY

The high-efficiency brushless motor operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to our competitors’ 36-V motors.



QUIET ABOVE AND BELOW THE WATER

The ultraquiet motor doesn’t scare fish and is nearly undetectable to sonar, so it won’t fuzz up your sonar screens with static.



WIRELESS FOOT PEDAL

Get instant responsiveness in a convenient pedal that feels and steers just like a cable-steered pedal. It operates wirelessly using AA batteries, but it can still be hardwire installed.



WATER-RESISTANT, FLOATING REMOTE

The included handheld remote control with a sunlight-readable display controls the trolling motor and features point-and-go gesture steering. User-programmable keys can be used to control your chartplotter.



ROBUST AND EASY TO USE

The Force trolling motor is rugged and durable, easy to deploy, and easy to retract and stow with dual gas springs. It’s backed with a 3-year warranty and a limited lifetime warranty on the shaft.



WIRELESS CHARTPLOTTER INTEGRATION

Wirelessly connect Force to your Garmin chartplotter, so you can create routes to your favorite waypoints and follow tracks while you fish.



INTEGRATED SONAR

Force comes with a built-in transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. See the specs tab for more details on additional sonar support. Built-in transducer is not compatible with ECHOMAP UHD cv series and GPSMAP XS Plus Series chartplotters.



BUILT-IN AUTOPILOT

The built-in autopilot, with integrated heading sensor and GPS, provides anchor lock, heading hold and cruise control. Just set your track, and it will guide you along your course.

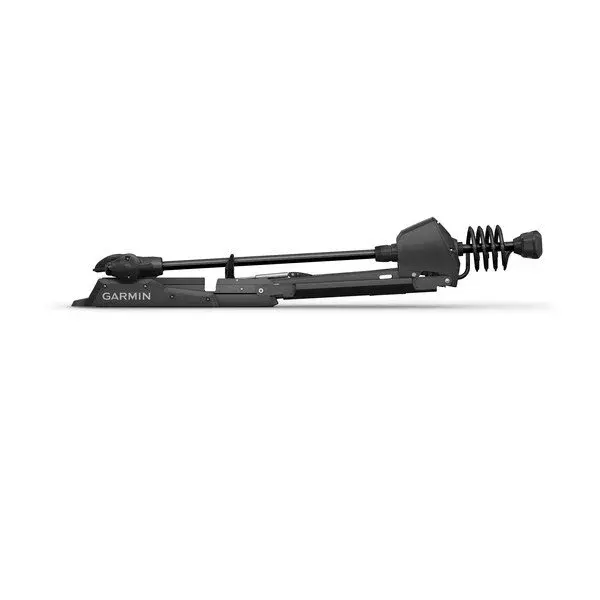

Garmin 50" Force® Trolling Motor

SKU: 010-02024-00
$3,549.99Price
Excluding Sales Tax
  • Motor

    Shaft length 50"
    For use in freshwater, brackish water and saltwater
    Mounting location bow
    Mount style scissor style mount
    Max thrust 100 lbs Per ISO 13342 using high efficiency propeller at 36V; 80lbs per ISO 13342 using high efficiency propeller at 24 Vdc
    Voltage 24 V or 36 V
    Electric steering yes
    Lift-assist dual gas springs
    Built-in heading sensor yes
    Built-in GPS yes (high-sensitivity GPS)
    Warranty 3-year, limited lifetime on shaft
    Water rating (components above water) IPX7
    Wireless remote yes (included)
    Foot pedal yes (included)
    Battery indicator yes
    Variable speed control yes (20 steps)

    Sonar

    Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz)
    ClearVu: Ultra-high definition 800 kHz
    SideVu: Ultra-high definition 1200 kHz and 455 kHz
    Partial frequencies supported CHIRP Sonar: High-wide CHIRP (150-240 kHz)
    ClearVü: 800 kHz
    SideVü: 455 kHz
    Transmit power 350 W
    Maximum depth CHIRP sonar: 800'
    ClearVü: 200'
    Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30'
    455 kHz SideVü: 500' to each side; 1000' total
    Depth/speed/temperature depth and temperature
    Number of pins 12-pin (orange connector)

    AutoPilot Features

    Route following yes
    Anchor lock yes
    Heading hold yes
    Cruise contorol yes
    Gesture features yes (manual+, heading hold+, jog+)

    Foot Pedal

    Dimensions 12" L x 9" W x 4 1/2" H
    Wireless communication yes
    Power installation 12V wired or battery powered (2 AA)
    AA battery life 1 full season
    Waterproof rating IPX7
    Adjustable pedal resistance yes

    Remote

    Display size 1.2" (30.4 mm) diameter
    Display resolution 240 x 240 pixels
    Display type color, sunlight-visible, transflective memory-in-pixel (MIP)
    Chartplotter user programmable keys yes
    Autopilot feature control yes
    Water rating IPX7
    Battery life typical use with backlight at low, 43.2 weeks
    Floats yes
